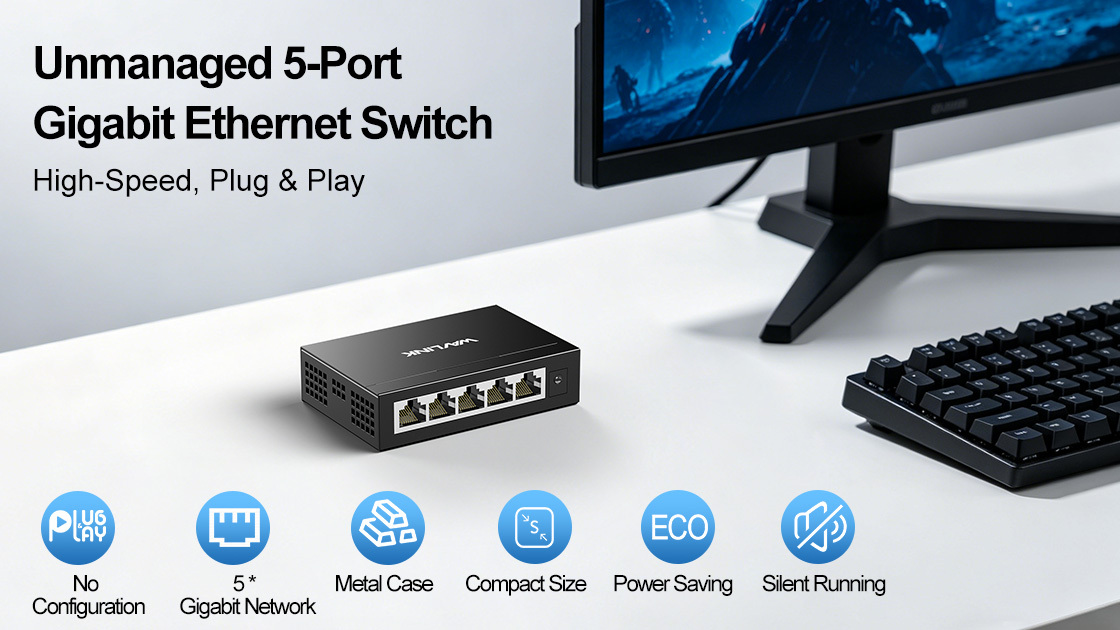

WAVLINK WL-NW905G1 5-Port Gigabit Ethernet Switch
₹2,410.00₹4,399.00 (-45%)
The WAVLINK WL-NW905G1 is a compact 5-port Gigabit Ethernet switch designed to expand wired network connectivity for homes, offices and other network environments. It provides five adaptive 10/100/1000Mbps RJ45 LAN ports, allowing compatible devices to connect at Gigabit Ethernet speeds while also supporting 10Mbps and 100Mbps connections.
With a 10Gbps switching capacity, IEEE 802.3x flow control, 9K jumbo frame support and automatic MAC address learning, the WL-NW905G1 is designed to provide efficient wired network communication. Its metal housing assists with heat dissipation, while the fanless construction enables quiet operation.
The switch uses an unmanaged, plug-and-play design, making it straightforward to connect to a router and additional wired devices such as PCs, network printers, smart TVs and gaming consoles.
Customers who bought this item also bought
WAVLINK WL-NW905G1 5-Port Gigabit Ethernet Switch
The WAVLINK WL-NW905G1 is an unmanaged 5-port Gigabit Ethernet switch designed for expanding wired network connectivity. It features five adaptive RJ45 LAN ports supporting 10Mbps, 100Mbps and 1000Mbps Ethernet connections.
The switch provides a 10Gbps switching capacity and supports features such as IEEE 802.3x flow control, automatic MAC address learning and aging, Auto-MDI/MDIX and 9K jumbo frames. Its compact metal enclosure provides durability and helps with heat dissipation, while the fanless design allows quiet operation.
Key Features
- 5 Gigabit Ethernet Ports: Five 10/100/1000Mbps adaptive RJ45 LAN ports for connecting multiple wired devices.
- 10Gbps Switching Capacity: Provides a 10Gbps switching capacity for efficient data handling across the network.
- Multi-Speed Compatibility: Auto-negotiation supports 10Mbps, 100Mbps and 1000Mbps Ethernet hardware.
- IEEE 802.3x Flow Control: Supports flow control for Full Duplex operation and backpressure for Half Duplex operation.
- 9K Jumbo Frame: Supports jumbo frames up to 9K for improved handling of large data transfers.
- Auto-MDI/MDIX: Automatically detects the connection type, eliminating the need for crossover cables.
- Automatic MAC Learning: Supports automatic MAC address learning and aging.
- Metal Housing: The metal enclosure assists heat dissipation and provides a sturdy construction.
- Fanless Operation: Fanless construction enables quiet operation without an internal cooling fan.
- Plug-and-Play: No complicated configuration is required for basic network expansion.
- Store-and-Forward: Uses store-and-forward technology for packet transmission.
- Compact Design: Unit dimensions are 93 × 68 × 25mm.
Suitable Applications
The WL-NW905G1 can be used to expand available Ethernet connections from a router or existing wired network. It can connect devices including:
- Desktop and laptop computers
- Network printers
- Smart TVs
- Gaming consoles
- Other compatible Ethernet-enabled devices
Technical Specifications
| Specification | Details |
|---|---|
| Model | WL-NW905G1 |
| Product Type | Unmanaged 5-Port Gigabit Ethernet Switch |
| LAN Ports | 5 × 10/100/1000Mbps RJ45 |
| MAC Address Table | 2K |
| LED Indicators | 1 × Power, 5 × Ethernet |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Switching Capacity | 10Gbps |
| Transfer Method | Store-and-Forward |
| MAC Address Learning | Automatic Learning |
| Packet Forwarding Rate – 10Mbps | 14,880pps |
| Packet Forwarding Rate – 100Mbps | 148,800pps |
| Packet Forwarding Rate – 1000Mbps | 1,488,000pps |
| Power Consumption | 5V/1A |
| Network Medium – Ethernet | Cat.3 UTP or better |
| Network Medium – Fast Ethernet | Cat.5 UTP or better |
| Network Medium – Gigabit Ethernet | Cat.5e UTP or better |
| Rated Input | 100–240V AC, 50/60Hz |
| Dimensions | 93 × 68 × 25mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 70°C |
| Operating Humidity | 10%–90%, non-condensing |
| Storage Humidity | 10%–90%, non-condensing |

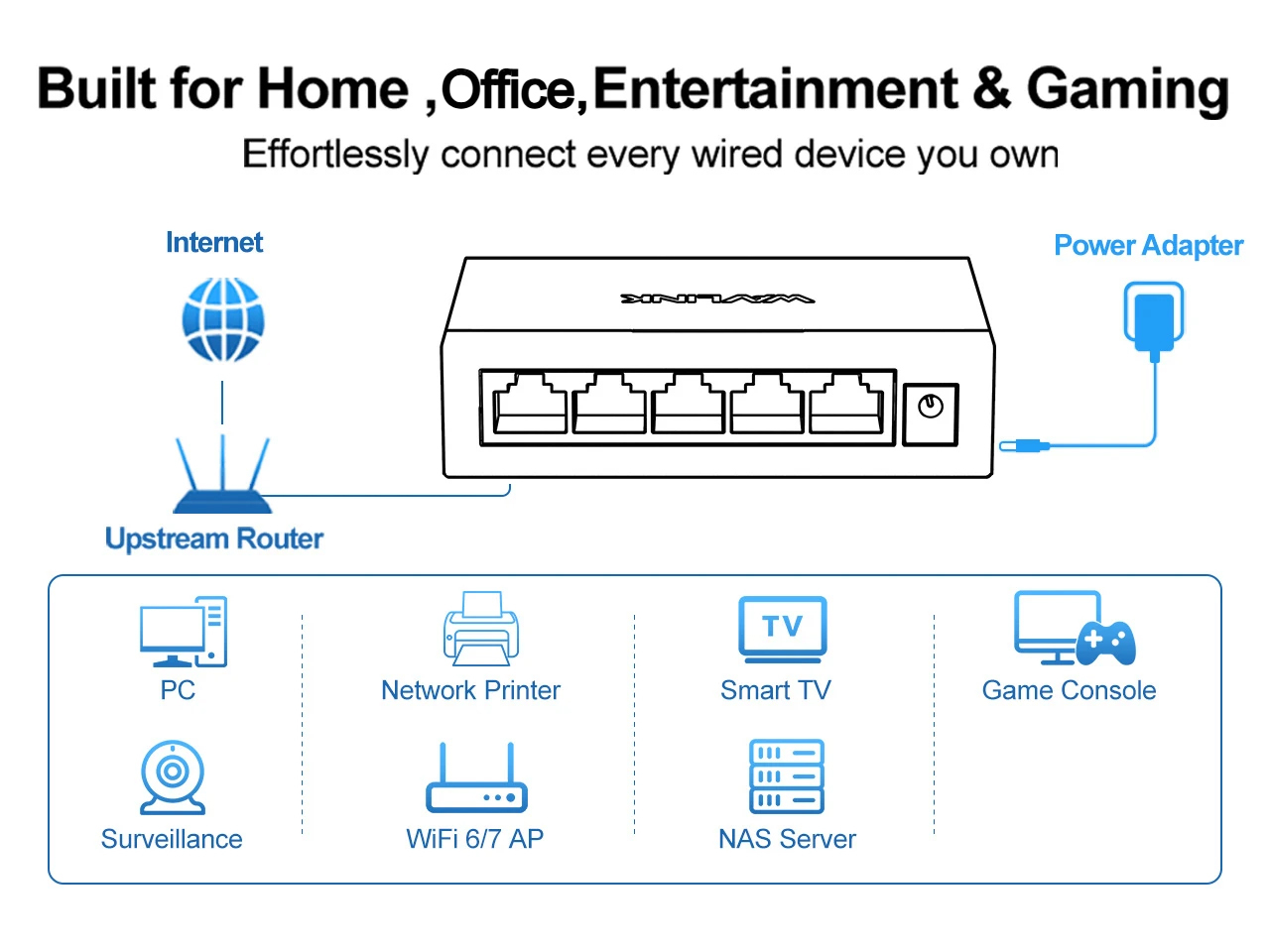

Simple Network Expansion
Connect the WL-NW905G1 to your router and use its additional Gigabit Ethernet ports to connect multiple wired devices. Its automatic negotiation allows the switch to work with 10Mbps, 100Mbps and 1000Mbps Ethernet devices.
Reliable Metal Construction
The switch uses a metal housing designed to assist heat dissipation during extended operation. The fanless design also helps maintain a quiet working environment, making it suitable for office, home and entertainment setups.

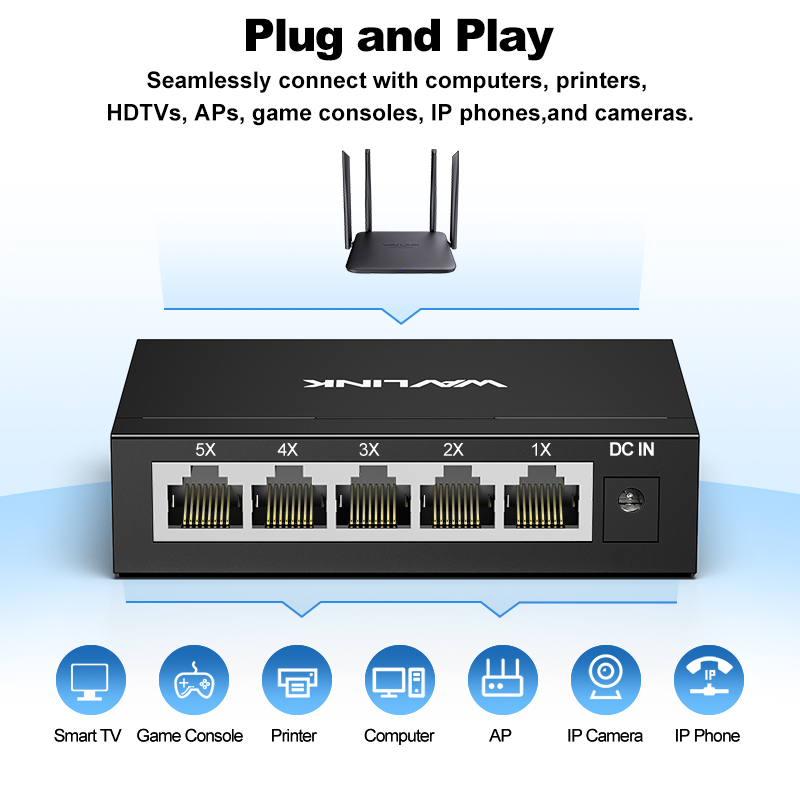

Plug-and-Play Installation
The WL-NW905G1 is designed for straightforward installation. Connect the power adapter, connect the switch to the router or network using an Ethernet cable, and then connect your wired devices to the available LAN ports.
Note: Actual network throughput depends on the connected devices, Ethernet cables, network environment and other network conditions.
Additional information
| Weight | 0.250 kg |
|---|---|
| Dimensions | 10 × 9 × 9 cm |
